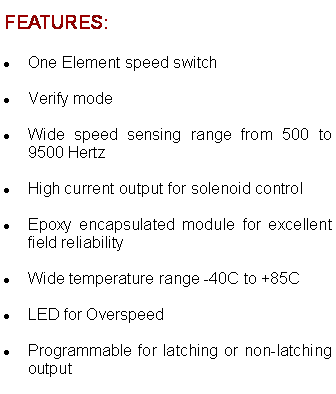

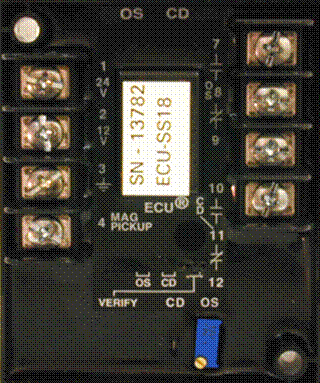

Text Box: Text Box: The ECU-SS18 is a state of the art electronic speed switch. It is designed for rugged system use and easy interface. The SS18 is a small and compact speed switch but is packed full of useful features. Text Box: ECUŽ -SS18 Text Box: ONE VERSION FOR 12 AND 24 VDC Text Box: APPLICATIONS: Generators, Pumps, Compressors Text Box: FEATURES: One Element speed switch Verify mode Wide speed sensing range from 500 to 9500 Hertz High current output for solenoid control Epoxy encapsulated module for excellent field reliability Wide temperature range -40C to +85C LED for Overspeed Programmable for latching or non-latching output Text Box: ECUŽ -SS18 EASY TO USE VERIFY MODE Text Box: The ECU-SS18 speed switch features a Verify Mode. This feature is useful because it reduces the engine stress normally associated with the setting of Overspeed trip points. When jumpered together, the verify pins lower the Overspeed and Crank Disconnect trip points by approximately 13%. The ECU-SS18 speed switch allows the user to program the relay to stay latched until the power is removed or automatically reset when the engine stops. If the Overspeed jumper is installed, power must be removed from the speed switch to reset the relay. When the Overspeed jumper is removed, the relay resets when the engine stops. Text Box: Specifications Subject to Change Without Notice

ECUŽ  IS A REGISTERED TRADEMARK OF

ENGINEERING CONCEPTS UNLIMITED, INC.

P.O. BOX 250 - 8950 TECHNOLOGY DRIVE - FISHERS, IN 46038

Voice: 317-849-8470 Fax: 317-849-6475 E-Mail: sales@ecu-engine-controls.com
Text Box: ECUŽ-SS18 0803F Text Box: ELECTRONIC SPEED SWITCH FOR DIESEL/GAS ENGINES Text Box: ECUŽ -SS18 EASY TO USE PROGRAMMABLE RELAY LATCHING
