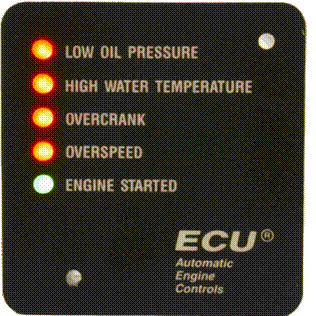

Text Box: The ECU-9988N engine control provides complete automation and safety monitoring of a gas or diesel engine. The ECU-9988N controls the starter and fuel thus completely taking the operator out of the picture. A built in speed switch controls both starter disengagement and overspeed protection.

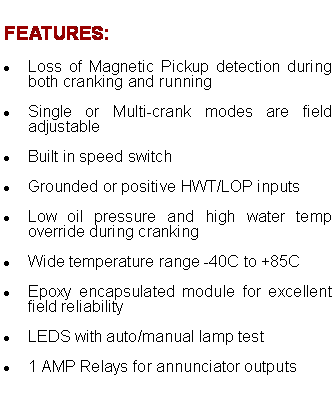

Text Box: FEATURES: Loss of Magnetic Pickup detection during both cranking and running Single or Multi-crank modes are field adjustable Built in speed switch Grounded or positive HWT/LOP inputs Low oil pressure and high water temp override during cranking Wide temperature range -40C to +85C Epoxy encapsulated module for excellent field reliability LEDS with auto/manual lamp test 1 AMP Relays for annunciator outputs

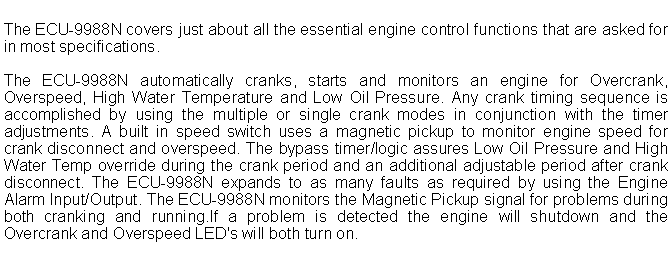

Text Box: The ECU-9988N covers just about all the essential engine control functions that are asked for in most specifications. The ECU-9988N automatically cranks, starts and monitors an engine for Overcrank, Overspeed, High Water Temperature and Low Oil Pressure. Any crank timing sequence is accomplished by using the multiple or single crank modes in conjunction with the timer adjustments. A built in speed switch uses a magnetic pickup to monitor engine speed for crank disconnect and overspeed. The bypass timer/logic assures Low Oil Pressure and High Water Temp override during the crank period and an additional adjustable period after crank disconnect. The ECU-9988N expands to as many faults as required by using the Engine Alarm Input/Output. The ECU-9988N monitors the Magnetic Pickup signal for problems during both cranking and running.If a problem is detected the engine will shutdown and the Overcrank and Overspeed LED's will both turn on.

Text Box: AUTOMATIC ENGINE CONTROL FOR DIESEL/GAS ENGINES

ECU®-9988N

ECU®-9988N A COMPLETE AUTOMATIC ENGINE CONTROL

ECU® IS A REGISTERED TRADEMARK OF ENGINEERING CONCEPTS UNLIMITED, INC.

P.O. BOX 250 - 8950 TECHNOLOGY DRIVE - FISHERS, IN 46038

Voice 317-849-8470 Fax 317-849-6475 www.ecu-engine-controls.com
