Text Box: ORDERING INFORMATION: ORDER BY SPECIFYING: ECUŽ-FEX3 Text Box: ECUŽ IS A REGISTERED TRADEMARK OF ENGINEERING CONCEPTS UNLIMITED, INC.

Mounting holes will accept No. 8 or No. 6 screws.

All dimensions in inches.

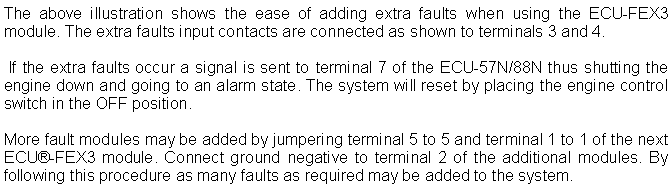

Text Box: ECUŽ-FEX3 TERMINAL OUT Text Box: PHYSICAL DIMENSIONS Text Box: SPECIFICATIONS: 10 AMPS MAX FROM RELAY CONTACTS 25% MAX DC OVERVOLTAGE Text Box: The above illustration shows the ease of adding extra faults when using the ECU-FEX3 module. The extra faults input contacts are connected as shown to terminals 3 and 4. If the extra faults occur a signal is sent to terminal 7 of the ECU-57N/88N thus shutting the engine down and going to an alarm state. The system will reset by placing the engine control switch in the OFF position. More fault modules may be added by jumpering terminal 5 to 5 and terminal 1 to 1 of the next ECUŽ-FEX3 module. Connect ground negative to terminal 2 of the additional modules. By following this procedure as many faults as required may be added to the system.

SAMPLE ECUŽ-FEX3 APPLICATION:

ECUŽ-57N/88N WITH 6 ENGINE SHUTDOWNS
