Text Box: ORDERING INFORMATION: ORDER BY SPECIFYING: ECUŽ -CAN70 Text Box: ECUŽ IS A REGISTERED TRADEMARK OF ENGINEERING CONCEPTS UNLIMITED, INC.

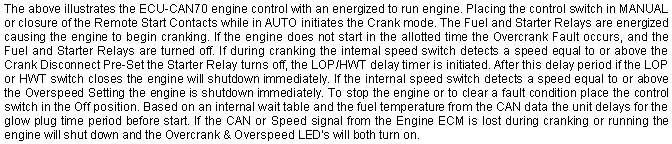

Text Box: SPECIFICATIONS: VOLTAGE RANGE - 9 TO 28 VOLTS STARTER AND FUEL OUTPUT - 5 AMPS MAX LAMP OUTPUTS (TOTAL) - 1 AMP MAX Text Box: The above illustrates the ECU-CAN70 engine control with an energized to run engine. Placing the control switch in MANUAL or closure of the Remote Start Contacts while in AUTO initiates the Crank mode. The Fuel and Starter Relays are energized causing the engine to begin cranking. If the engine does not start in the allotted time the Overcrank Fault occurs, and the Fuel and Starter Relays are turned off. If during cranking the internal speed switch detects a speed equal to or above the Crank Disconnect Pre-Set the Starter Relay turns off, the LOP/HWT delay timer is initiated. After this delay period if the LOP or HWT switch closes the engine will shutdown immediately. If the internal speed switch detects a speed equal to or above the Overspeed Setting the engine is shutdown immediately. To stop the engine or to clear a fault condition place the control switch in the Off position. Based on an internal wait table and the fuel temperature from the CAN data the unit delays for the glow plug time period before start. If the CAN or Speed signal from the Engine ECM is lost during cranking or running the engine will shut down and the Overcrank & Overspeed LED's will both turn on.

SAMPLE ECUŽ-CAN70 APPLICATION:

AUTOMATIC ENGINE CONTROL OF DIESEL/GAS ENGINE
Text Box: PHYSICAL DIMENSIONS
